2011 COILED TUBING REEL TRAILER, NOV HYDRARIG
2011 COILED TUBING REEL TRAILER, NOV HYDRARIG
Contact us for price
Location:Mount Pleasant, MI
or
Call +1 (989) 954-9427
Description

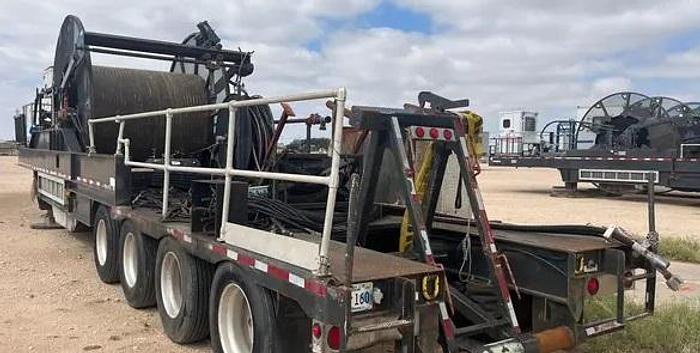

2011 NOV HydraRig Coiled Tubing Reel Trailer. Reel Dimensions: 152" OD, 84" Drum Diameter and 90" Drum Width.
Specifications
| Manufacturer | HydraRig |
| Model | CD022621 |
| Year | 2011 |
| Condition | Used |
| Serial Number | 1A9LX51469A245758 |
| Stock Number | CRL-2311-0162 |
| Type | Trailer |
| Item condition | Used - Good |

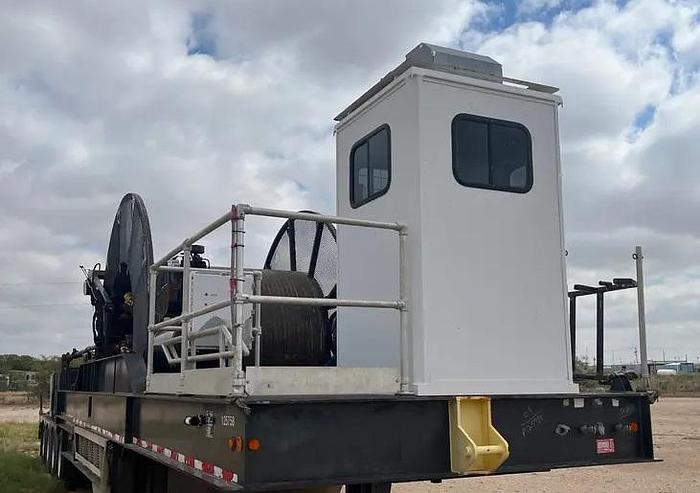

| Control cabin | NOV HYDRA RIG, Operators Cabin, 4ft x 4ft x 7ft, Heater and AC |

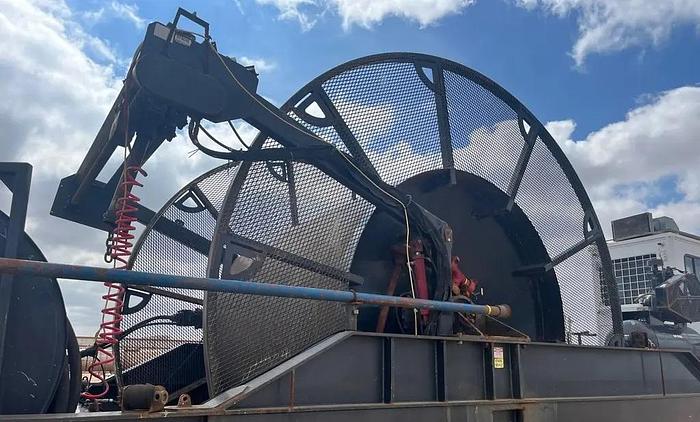

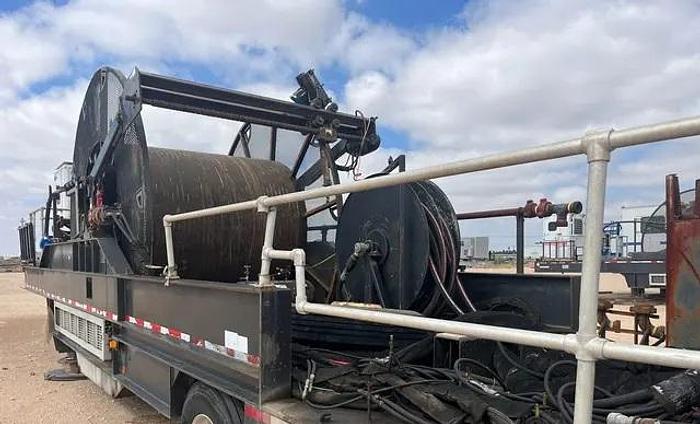

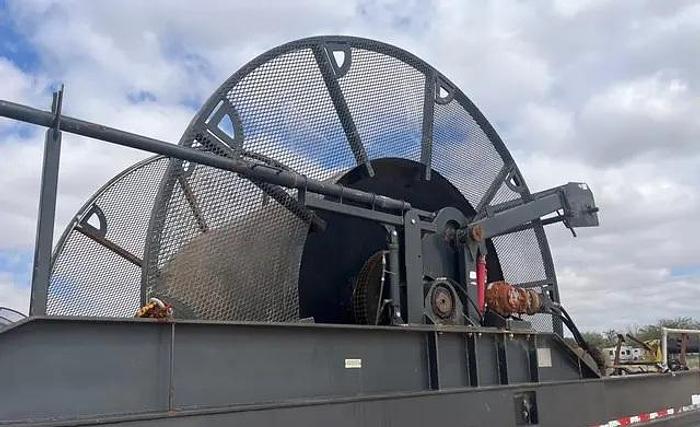

| Reel | NOV HYDRA RIG CD402200 Coiled Tubing Direct Hydraulic Drive Reel 84" Drum Diameter, 90" Drum Width, 152" Outer Diameter. Level Wind and Measuring Head. |
| Estimated reel capacities | 54,300ft of 1-1/4”. 40,400ft of 1-1/2”. 29,700ft of 1-3/4”. 23,600ft of 2”. 15,900ft of 2-3/8” |
| Injector head | Mount Only w/Hydraulic Tilt |

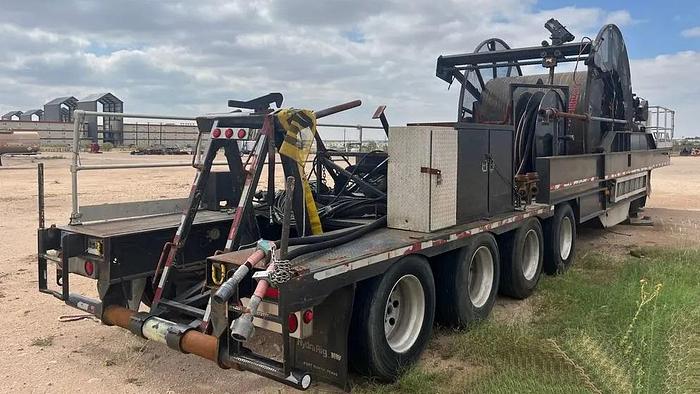

| Trailer | 2009 ATOKA 10' Wide, Quad Axle, Trailer, w/Hydraulic Landing Gear, Air Ride Suspension. 11R22.5 Tires. |

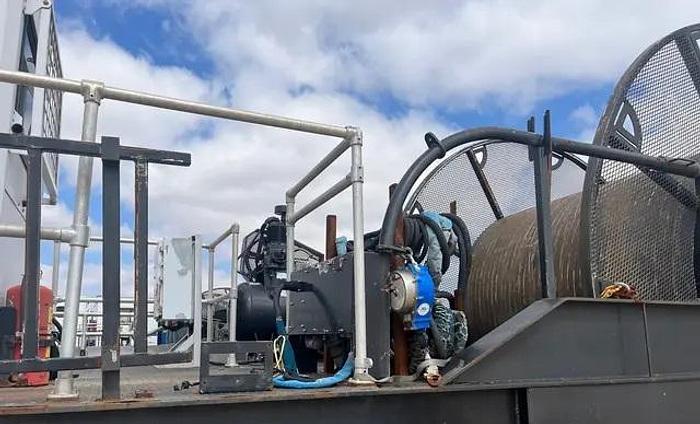

| Hyd. & Power | Auxiliary Hydraulic and Electrical Power Required. Hydraulic Hoses Included. |
